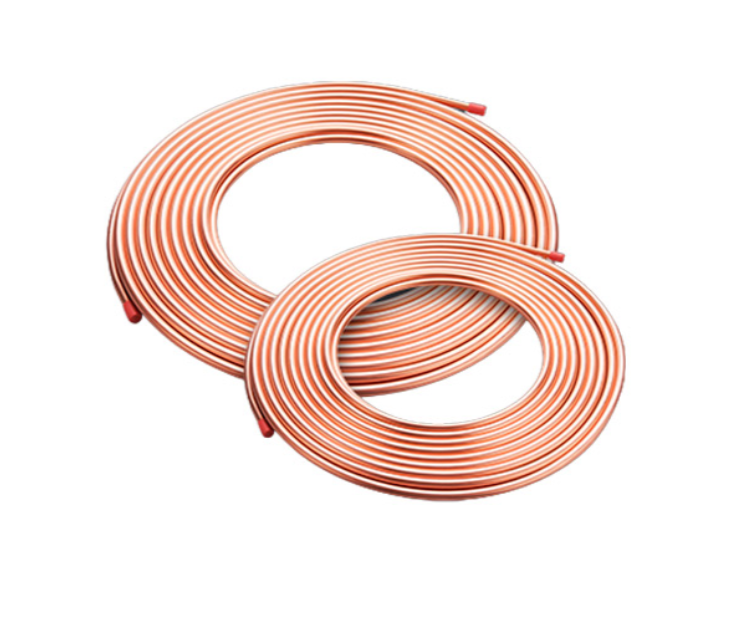

C1100 C12200 1/4" 3/8" 1/2" 3/4" 15 Meters Copper Pancake Coil Copper Pipes Tube For Air Conditioner
C1100 C12200 1/4" 3/8" 1/2" 3/4" 15 Meters Copper Pancake Coil Copper Pipes Tube For Air Conditioner
Outside diameter | Thickness | Norminal weight | |||
Inch | mm | Inch | mm | 15m | 50' |
3/16" | 4.76 | 0.030 | 0.76 | 1.28 | 1.30 |
1/4" | 6.35 | 0.030 | 0.76 | 1.78 | 1.81 |
5/16" | 7.94 | 0.032 | 0.81 | 2.43 | 2.46 |
3/8" | 9.52 | 0.032 | 0.81 | 2.97 | 3.01 |
1/2' | 12.70 | 0.032 | 0.81 | 4.04 | 4.11 |
5/8" | 15.87 | 0.035 | 0.89 | 5.60 | 5.69 |
3/4" | 19.05 | 0.035 | 0.89 | 6.79 | 6.90 |
7/8" | 22.23 | 0.045 | 1.14 | 9.99 | 10.15 |
A copper pancake coil is a specific type of pancake coil that is made from copper wire. Copper is an excellent conductor of electricity, which makes it an ideal material for use in coils and other electrical components. As one of the best copper tube coil manufacturers, our company produces high-quality products which can be used in the connection and maintenance installation of air conditioning and refrigeration industry pipelines.
